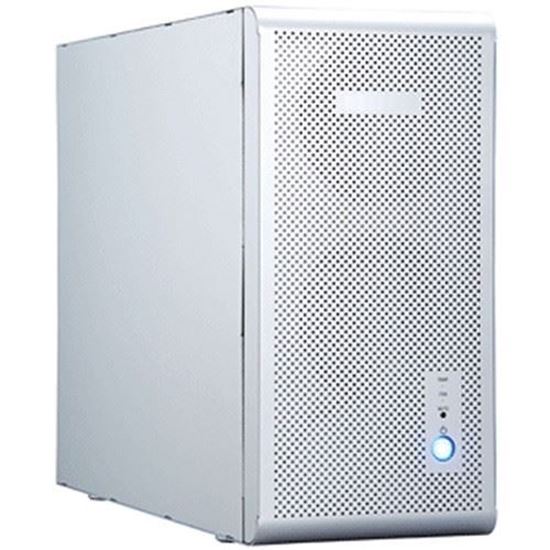

Model | NA255A-XGPU |
Form Factor | Desktop |
Host Interface | Up to 128Gb/s external PCIe 3.0 x16 |
No. of Slot | 4* PCI Express 3.0 x8 (x16 connector) |
Card Length Available | Supports full length,full height PCI Express Cards |
LED Display for Enclosure | Power-On LED - Blue FAN normal - green; Fan failure - Red TEMP normal - green; TEMP Over 55°C - red |
Cooling | Front: two 120x120x25 mm cooling fans 75 CFM each fan @ full speed |
Alarm | Buzzer beeping for fan failure or over temperature (over 55°C) occurs |
Material | Solid metal structure with aluminum housing |
Power Supply | Model : NA255A-XGPU Universal Single 1200W (High-Efficiency & Low Noise) Input: 90~230 VAC/50-60 HZ 12V @ 100A (Note: 1300W peak power @ 12 seconds) |
Dimension | 450 (D) x 175.8 (W) x 374 (H) mm 17.7 (D) x 6.9 (W) x 14.7 (H) inch |
O.S. support | OS Independent |
Host Requirement | One PCIe 3.0 x16 slot and system has sufficient PCIe resources Note: 1. The tower MacPro under 10.9 Mavericks and 10.10 Yosemite only supports up to 2 nVidia GPU cards. 2. Now the tower MacPro under 10.11 El Capitan is able to support up to 3 nVidia GPU cards again. |
