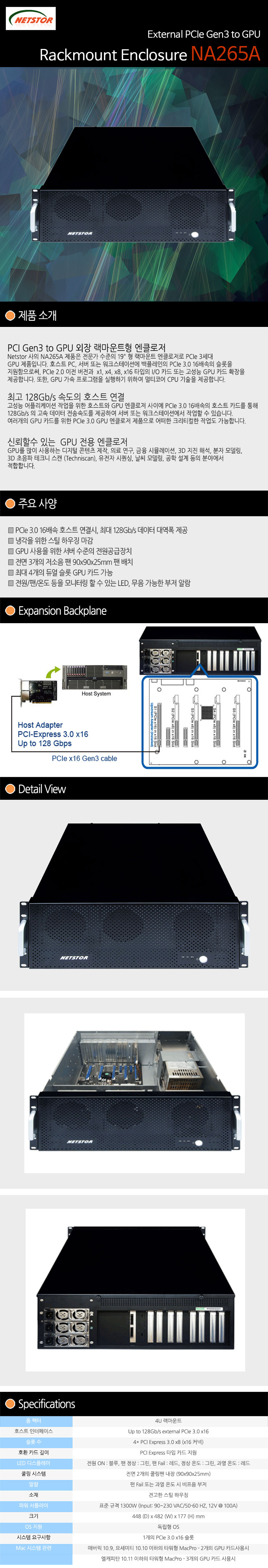

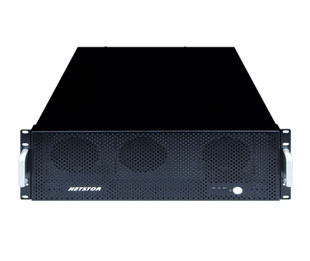

TurboBoxExternal PCIe Gen3 to GPU Rackmount Enclosure NA265A
Model | NA265A |
Form Factor | 4U Rackmount |
Host Interface | Up to 128Gb/s external PCIe 3.0 x16 |
No. of Slot | 4* PCI Express 3.0 x8 (x16 connector) |
Card Length Available | Supports full length,full height PCI Express Cards |
LED Display for Enclosure | Power-On LED - Blue FAN normal - green; Fan failure - Red TEMP normal - green; TEMP Over 55°C - red |
Cooling | Front: Three 90x 90x 25 mm cooling fans 51 CFM each fan @ full speed |
Alarm | Buzzer beeping for fan failure or over temperature (over 55°C) occurs |
Material | Solid heavy-duty cold-rolled steel housing |
Power Supply | Model : NA265A-XGPU-S Universal Single 1200W (High-Efficiency & Low Noise) Input: 90~230 VAC/50-60 HZ 12V @ 100A (Note: 1300W peak power @ 12 seconds) Model : NA265A-XGPU-R Universal Redundant 1350W (Server-grade) Input: 90~230 VAC/50-60 HZ 12V @ 98A |
Dimension | 448 (D) x 482 (W) x 177 (H) mm 17.6 (D) x 19 (W) x 7 (H) inch |
O.S. support | OS Independent |
Host Requirement | One PCIe 3.0 x16 slot and system has sufficient PCIe resources Note: 1. The tower MacPro under 10.9 Mavericks and 10.10 Yosemite only supports up to 2 nVidia GPU cards. 2. Now the tower MacPro under 10.11 El Capitan is able to support up to 3 nVidia GPU cards again. |
