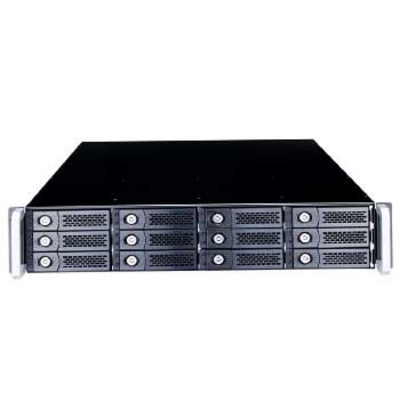

Model | NA322A-G3 |
Host Interface | External PCIe 3.0 x8 |
Data Transfer Rate | Up to 64Gbps |
HDD Interface | SAS/SATA (6G/3Gbps) |
No. of Disk(s) | Up to 12 (For 3.5" HDD & sold separately) |
RAID Levels | Requires a RAID card with internal 12 port (RAID card sold separately) |
PCIe Slot Expansion | None |
LED Display for Enclosure | Fan normal - Green; Fan failure - Red Temp. normal - Green; Temp. over 50°C - Red |
LED Display for each Tray | White - Power On Indicator Flash Blue - HDD Accessing Indicator Red - HDD Failure Indicator |
Alarm | Mutable buzzer beeping for fan failure or over temperature occurs |
Material | Heavy-duty cold-rolled steel Housing |
Power Supply | 400W Redundant PSU Input: 90-230 VAC/50-60 HZ Output: +5V and +12V |
Dimension | 559(D) x 482(W) x 88.5(H) mm 22 (D) x 19 (W) x 3.49 (H) inch |
